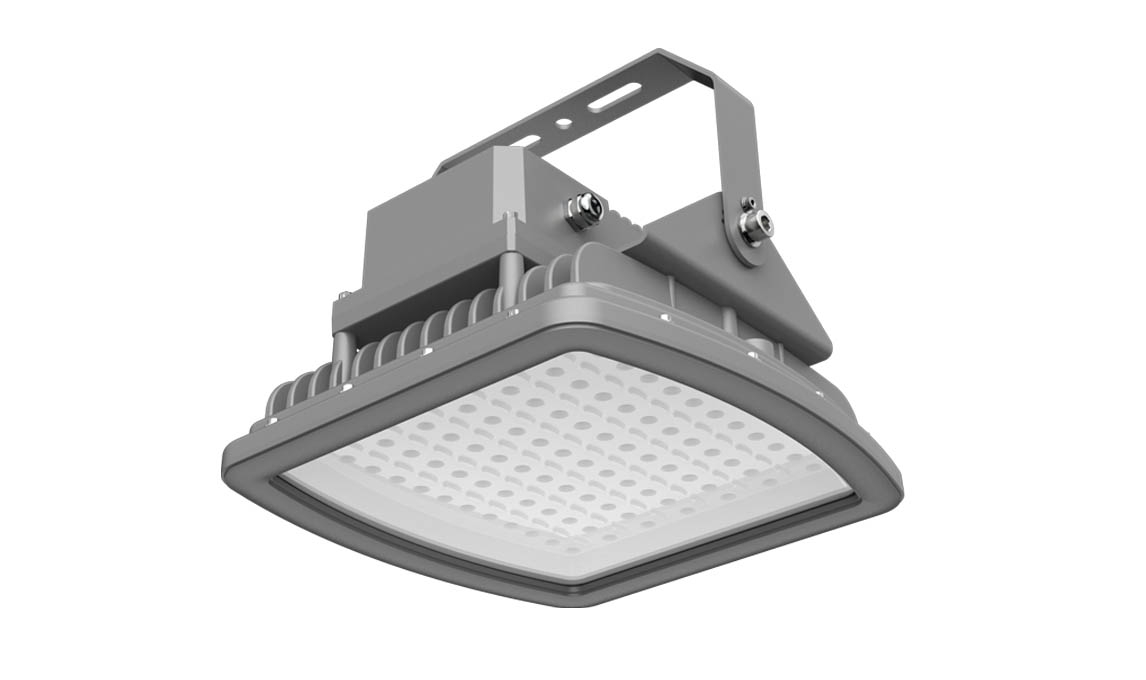

Explosion proof LED Flood Light for Zone 1 Zone 21 Hazardous Areas-60W/80W/100W

Compared with traditional hazardous area light fixture, this LED explosion-proof LED floodlight is more than 50,000 hours lifespan, and the maintenance is reduced to 30% of the double input cost of the traditional lighting system. At the same time, the device is equipped with a well-designed optical system, high luminous efficiency and various beam angle options. ADC12 die-cast aluminum, 8mm tempered glass has better shock and vibration resistance. There are a variety of installation methods for your different projects. UL1598A North American marine anti-corrosion for marine application. Can be used in hazardous areas Zone 1&21, Zone 2&22.

Applications:

• Wastewater treatment，oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.

Warning：

• “WARNING – DO NOT OPEN WHEN ENERGIZED”
• “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
• “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”
• End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
• External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
• Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.

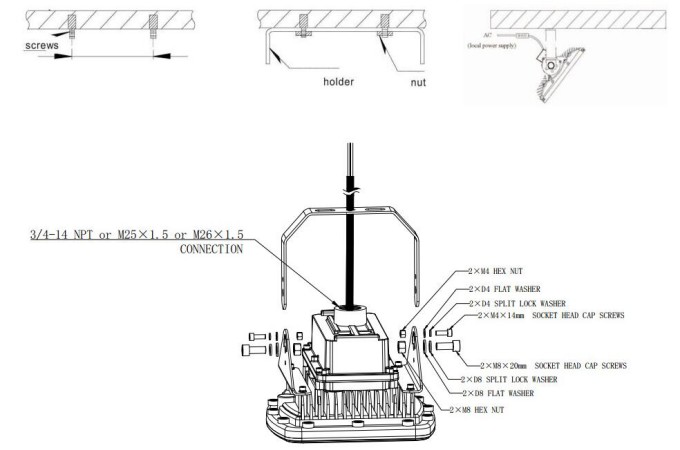

Mounting:

Fix 2 M10 screws on the wall according to the distance between the holes of the bracket. Install the bracket on the screws and then fasten it with the nut. Fix the position of the lamp Place the lamp cord into the pole; connect the wire to local power supply (AC100-277V).
