Product Name:

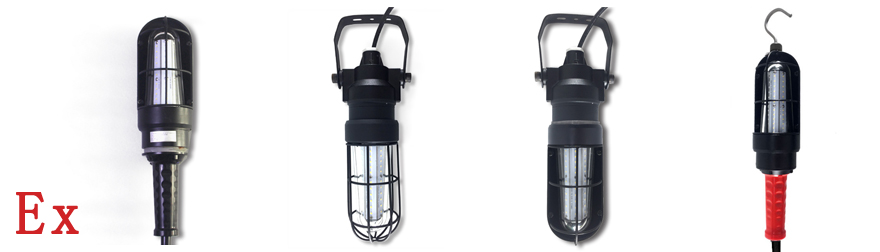

Portable Explosion LED Hand light/LED Drop Light
Model No.:
CES-SC

Product Abstract:

Portable Explosion LED Hand light/LED Drop Light(Class 1 DIV 1/ Zone 1& 21)

Product Description

The LED explosion proof hand lamp and drop light is UL approved Class 1 Division 1 Groups A、B、C and D - UL844 listed and ideal for close quarter work and inspection activities in moisture, dirt, corrosion and vibration hazardous locations requiring explosion proof protection.

We also provice OEM & ODM service of explosion proof drop lights, work area drop light & string light and hazardous location drop lights, detail please contact us by rain@phtrd.com

This Explosion proof LED Hand Lamp Certification Standards

UL844 – Class I Division 1&2 Group A.B.C.D
IEC/ATEX Standard
Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
Zone 1, Zone 21, Zone 2, Zone 22

This Explosion proof LED Hand Lamp Description

Best-in-class system efficacy - Up to 3000lm,Instant on/off operation
Universal Voltage:AC120-277V(50/60Hz)/DC12-24V(Emergency Mode Run time:3hours available)
Wide ambient temp. range from - 40°C to + 50 °C ( -40°F ~ + 122°F)
Safe and reliable heat transfer - Offering a T-rating of T3C (CID2) / T4A (CIID1)
Rugged fabricated steel and cast aluminum construction.
Shock-and vibration-resistant - Durable LED with solderless board connection
Rugged fabricated steel and cast aluminum construction and Copper-free aluminum body ,corrosion resistant, tempered glass lens prevent shattering
All exposed fasteners with high quality stainless steel
Thermal shock and impact resistant tempered glass lens
Slim and compact design, Swivel hook for hanging and hands free operation
Explosion proof cord

Parameters

Items	CES-SC
Rated Power	30W
Input Voltage	AC120-277V(50/60Hz) or DC12-24V(Emergency Mode Run time:3 hours)
Input Frequency	50/60Hz
Power Factor	≥0.95
Surge Protection	1.5kv
Lumen	3000lm( 100lm/per watt)
Beam Angle	180°/360°
Correlated Color Temperature (CCT)	5000K
Color Rendering Index (CRI)	>73
Ambient Operating Humidity	5%～95% RH
Ambient Operating Temperature	-40°C ～+50°C/ - 40°F～+122°F
OptimalOperating Temperature	25°C (77°F)
T-Code	CID1: T6 CID2, CIID2: T4A
Housing Material	Heavy duty copper free aluminum alloy housing, ABS+PC handle
Lens Material	10mm
Mounting Opitional	Portable or hanging tandem installation
IP Rate	IP66
IK Rate	IK10
Dimension and N.W.	100*554mm, 2.5KG
Packing and G.W.	650160140mm, 3KG(one packed in a carton)

Installation

Portable Hanging tandem installation

Application

Oil refinery tank/Loading Docks / Platforms / Shipyards
Chemical Processing Facility
Petrochemical Processing Facility
